Unless you slept through 2025, you already know about the Aimpoint COA. But if you’re just waking up, the COA is a fully enclosed red-dot optic with a unique mounting system Aimpoint calls the A-CUT. What makes it different?
Aimpoint bills the COA as a red dot that’s optimized for concealed-carry pistols: ultra-compact, built for slimline and standard frames, and engineered for reliability, simplicity, and a great shooting experience.
I call the mount the “ski-boot” system. The front of the optic dovetails into a matching cut on the slide and the rear sight clamps the optic firmly in place. The A-CUT is one of the strongest, most robust mounting systems to come along in years.
Why talk about a 2025 optic in 2026? Because Aimpoint’s COA was exclusive to GLOCK until January 20, 2025. Until, that is, SHOT Show 2026 when Springfield Armory jumped in and became the first non-GLOCK Aimpoint partner to adopt the COA A-CUT mounting system.
Springfield will now offer the Echelon 4.5F, Echelon 4.0FC, and Echelon 4.0C with the A-CUT, each shipped with an Aimpoint COA included.
I’ve been an Echelon fan since the 4.5F launched back in 2023. From day one I liked the modular pistol’s accuracy, reliability, versatility, and ergonomics.
The original Echelon series used Springfield’s VIS (variable interface system) for optics mounting. VIS let you fit nearly any optic using a kit of pins and screws included with the pistol. That was a game-changer. The Aimpoint COA and the “A” Cut change the equation again—this is a different ecosystem.

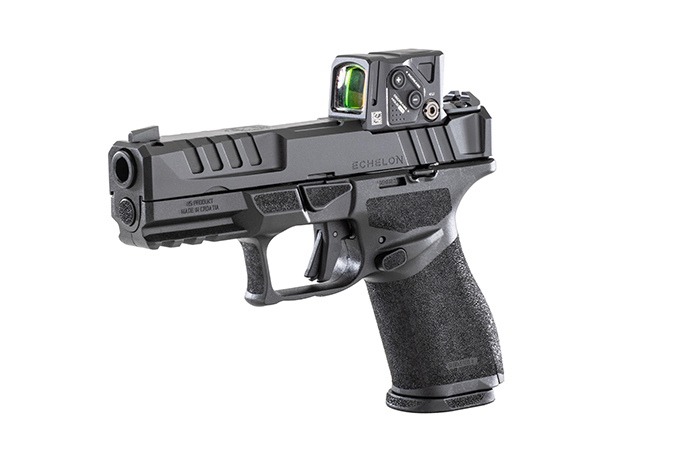

For testing I used my favorite model: the Echelon 4.0C compact. I’ve carried one every day for about five months, so it was the obvious choice to evaluate the COA-equipped version.
What’s different on the Echelon COA versus the original 4.0C? From front to back:

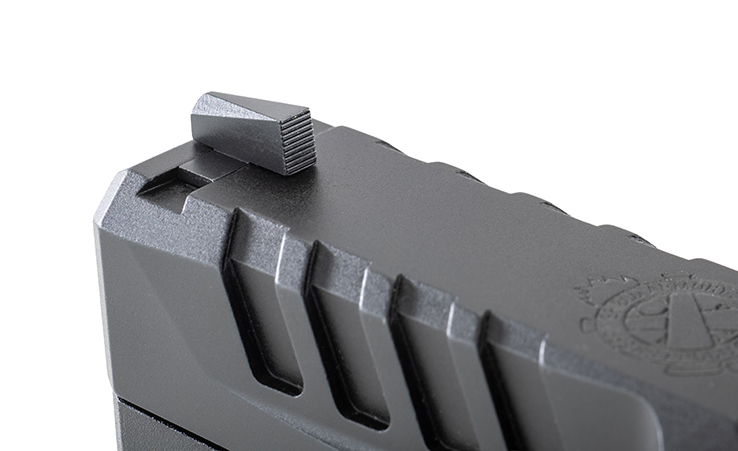

Front sight: the new Echelon COA uses an all-black serrated front sight rather than the tritium with green ring found on the original Echelon.

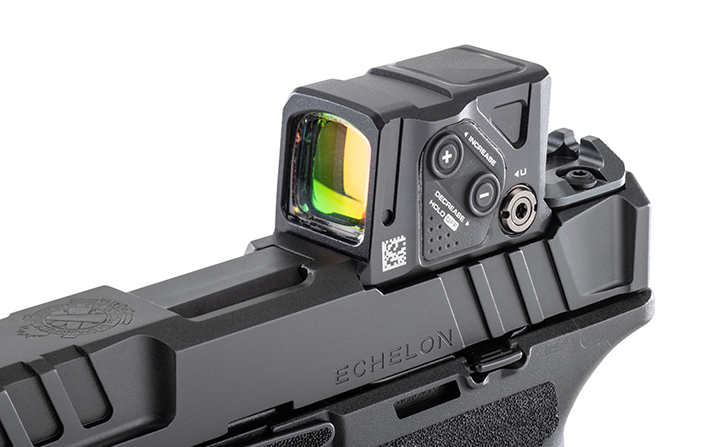

Mounting: The VIS mounting system is gone, replaced by the Aimpoint A-CUT. The COA sight arrives factory-installed; you shouldn’t need to remove it unless something truly catastrophic happens. The battery compartment is on the optic’s side for easy access, so routine battery changes don’t require optic removal.

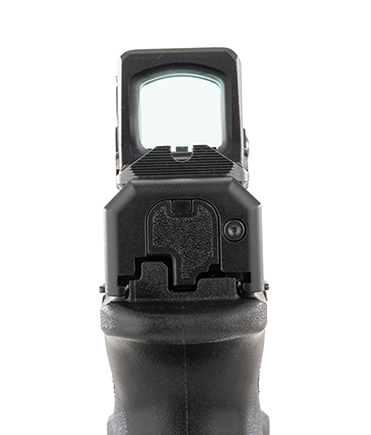

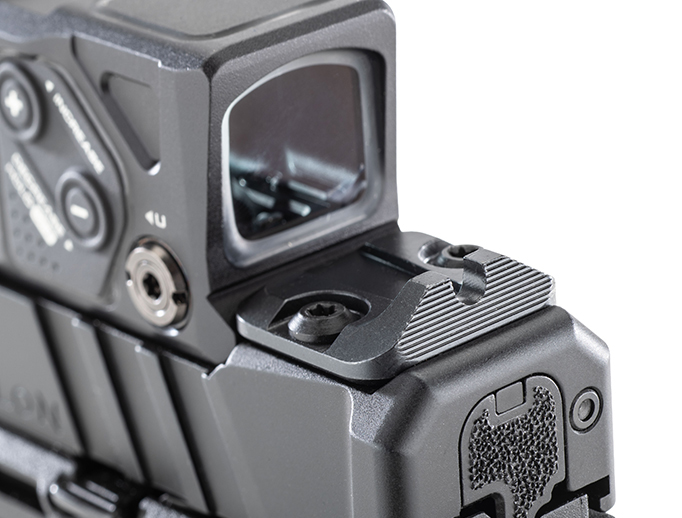

Rear sight: on the Echelon COA the rear sight both provides a co-witness and clamps the COA into the slide. It’s a black serrated sight with a U-notch—a clean, usable design I wish Springfield would offer more widely, instead of the white U-notch on some standard models.
Can you convert your current Echelon to accept the Aimpoint COA? I don’t have a definite answer on that yet. My guess is that Springfield will offer A-CUT Echelon slides as aftermarket options, allowing owners adopt the COA ecosystem without buying a whole new pistol, but they haven’t announced that yet.
The Test
I took the Echelon COA straight to the range with some Federal Syntech 115-gr round-nose and Federal American Eagle 115-gr FMJ. I was so eager I neglected to fully zero the optic before my first shots. Since the the COA ships factory-installed, I expected it might be close.
At about 10 yards on a USCCA universal target, the first 20 rounds struck roughly two inches low of point of aim. Windage was essentially dead on.
The COA’s window is a major plus. It gives a field of view comparable to an ACRO but in a smaller, lower-profile package. That big window made target acquisition fast and natural.
Zeroing was straightforward. Windage adjustment is on the COA’s right side; elevation, brightness, and on/off are on the left. Adjustments have tactile click detents and require a Torx T-10 wrench—which is included with the pistol alongside the manual and warranty card.
Short-Term Carry

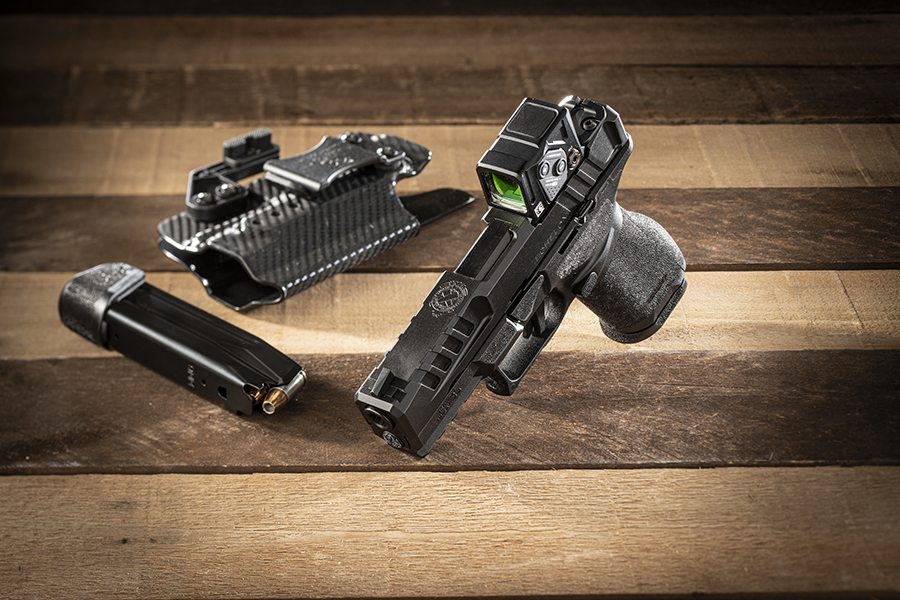

I’ve only had a few days with the gun, so I couldn’t perform a long-term EDC evaluation. In those few days, though, it was perfectly comfortable in the same holster I’ve been using for my 4.0C. The COA doesn’t add awkward bulk or interfere with draw and re-holstering.
Because the Aimpoint COA is a closed-emitter optic, keeping the lens clean is easier than with open-emitter dots. Dust, dirt and debris aren’t going to foul the emitter, which is a real advantage for an everyday carry gun.
Parting Shots
I’m already spoiled by the Aimpoint COA. I loved the Echelon 4.0C as my EDC, and the 4.0C COA looks like it will be my new favorite. The A-CUT mount is robust, the COA optic is compact and factory installation simplifies everything.
If Springfield offers retrofit A-CUT slides, owners of existing Echelons will be able to join the COA ecosystem without buying a whole new pistol—something to watch for.
